We also have with us extensive industry experience in successfully handling the demands of manufacturing a wide range of Hydraulic Presses as per Customer's given specifications. Having achieved high growth rate right since our establishment, the success achieved by us is because of our gaining complete customer's satisfaction. Sarvadnya Hydraulic & Automation is one of the leading Manufacturer of Hydraulic Presses in Nashik, Maharashtra, India
4-column hydraulic presses are advantageous because they typically more economical than gib-guided presses and allow four-sided access to the working area. Multipress offers a wide variety of hydraulic 4 post hydraulic presses or 4 column presses ranging from 20 to 1000 ton in capacity. While we offer several “standard” sizes based on typical use, Multipress routinely builds customized 4-post hydraulic press models based on individual client application and production requirements.

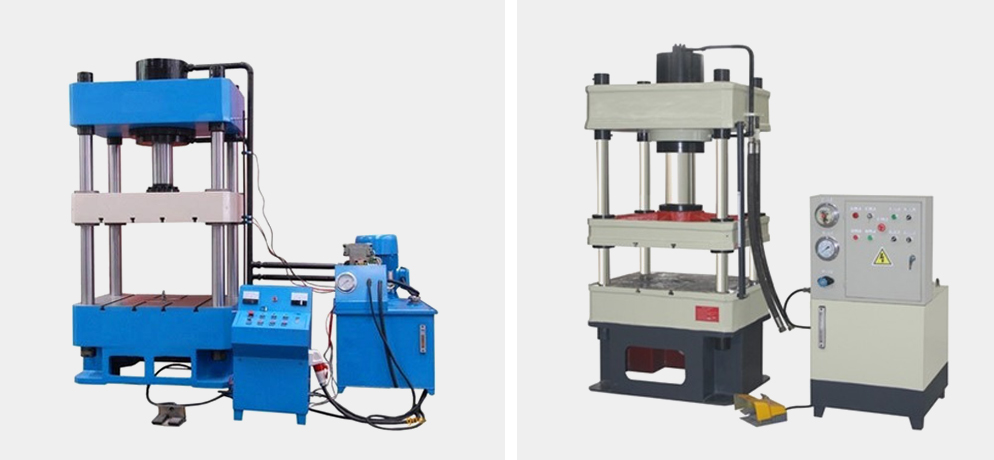

The 4 Column Press offered by us feature use of precision designed components including bed, crown, slide and side Housings (uprights). Further, the bed has removable bolster as well as contains one/more die cushions for ensuring smooth deep-drawing operations. Here, the Side Housing used is either :
Solid welded members
Fabricated using steel uprights
Whole structure is joined together with steel tie rods
| Models | Capacity (Tons) | Ram Size (mm) | Daylight (mm) | Stroke (mm) | Shut Hgt. (mm) | Table size (LxW) mm | Electric Motor (H.P) | No. of Cylinders | Working Hi (mm) | Bottom Ejector | Slide Locking Arrang- ment | T-Slot | Working Pr. (Bar) | Weight of m/c (Appx.) Tons |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHC-5 | 5 | 80 | 300 | 300 | - | 350 x 300 | 3 | 1 No. (D/A) | 700 | Optional | - | T-16 | 210 | 2 |
| PHC-10 | 10 | 100 | 350 | 350 | - | 350 x 300 | 5 | 1 No. (D/A) | 700 | Optional | - | T-16 | 210 | 2.5 to 3 |
| PHC-15 | 15 | 120 | 400 | 400 | - | 400 x 300 | 5 | 1 No. (D/A) | 700 | Optional | - | T-16 | 210 | 3-3.5 |
| PHC-20 | 20 | 125 | 400 | 400 | - | 400 x 300 | 5 | 1 No. (D/A) | 700 | Optional | - | T-16 | 210 | 3.5 |
| PHC-25 | 25 | 125 | 400 | 400 | - | 450 x 300 | 5 | 1 No. (D/A) | 700 | Optional | - | T-16 | 210 | 4-5 |
| PHC-30 | 30 | 140 | 400 | 400 | - | 450 x 300 | 5 | 1 No. (D/A) | 700 | Optional | - | T-16 | 210 | 4-5 |
| PHC-50/60 | 50/60 | 200 | 450 | 350 | 100 | 500 x 500 | 7.5 | 1+2 | 750 | Optional | - | T-16 | 210 | 5 to 6 |
| PHC-80 | 80 | 220 | 500 | 400 | 100 | 600 x 500 | 7.5 | 1+2 | 750 | Optional | - | T-20 | 210 | 6 |
| PHC-100 | 100 | 250 | 600 | 450 | 150 | 600 x 600 | 7.5 | 1+2 | 750 | Optional | - | T-20 | 210 | 6.5 |
| PHC-125 | 125 | 270 | 700 | 550 | 150 | 700 x 600 | 10 | 1+2 | 750 | Optional | - | T-22 | 210 | 7 |
| PHC-150 | 150 | 300 | 700 | 550 | 150 | 800 x 600 | 15 | 1+2 | 750 | Optional | - | T-22 | 210 | 8 |
| PHC-200 | 200 | 350 | 700 | 500 | 200 | 900 x 800 | 20 | 1+2 | 750 | Optional | Provided | T-22 | 210 | 10 |
| PHC-250 | 250 | 400 | 800 | 550 | 250 | 1000 x 800 | 25 | 1+2 | 750 | Optional | Provided | T-22 | 210 | 11 |
| PHC-300 | 300 | 440 | 800 | 600 | 200 | 1000 x 900 | 30 | 1+2 | 750 | Optional | Provided | T-24 | 210 | 12 |
| PHC-350 | 350 | 470 | 900 | 600 | 300 | 1000 x 1000 | 30 | 1+2 | 750 | Optional | Provided | T-24 | 210 | 14 |
| PHC-400 | 400 | 510 | 900 | 600 | 300 | 1000 x 1000 | 40 | 1+2 | 750 | Optional | Provided | T-24 | 210 | 15 |
| PHC-500 | 500 | 565 | 1000 | 700 | 300 | 1000 x 1000 | 50 | 1+2 | 750 | Optional | Provided | T-24 | 210 | 16 |
| PHC-600 | 600 | 440 | 1100 | 800 | 300 | 1200 x 1000 | 60 | 2+2 | 800 | Optional | Provided | T-24 | 210 | 18 |
| PHC-700 | 700 | 470 | 1200 | 900 | 300 | 1250 x 1000 | 60 | 2+2 | 800 | Optional | Provided | T-30 | 210 | 22 |
| PHC-800 | 800 | 510 | 1200 | 800 | 400 | 1500 x 1200 | 75 | 2+2 | 800 | Optional | Provided | T-30 | 210 | 26 to 28 |
| PHC-900 | 900 | 500 | 1500 | 1100 | 400 | 1500 x 1200 | 75 | 2+2 | 800 | Optional | Provided | T-30 | 210 | 30 to 35 |
| PHC-1000 | 1000 | 530 | 1500 | 1000 | 400 | 1500 x 1200 | 75 | 2+2 | 800 | Optional | Provided | T-30 | 210 | 35 to 40 |
| PHC-1200 | 1200 | 510 | 1500 | 1000 | 500 | 2000 x 1500 | 75 | 3+4 | 800 | Optional | Provided | T-30 | 210 | 50 |
| PHC-1500 | 1500 | 530 | 1500 | 1000 | 500 | 2000 x 1500 | 100 | 3+4 | 800 | Optional | Provided | T-30 | 210 | 55-60 |
