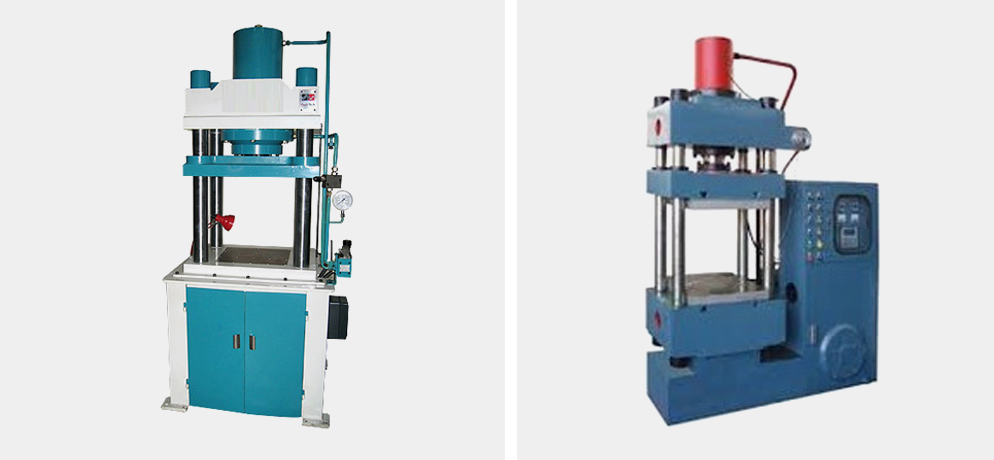

Our rich industry experience and in-depth product knowledge allows us to successfully match up with the demands of 4-nos Hard Chrome Pillars Type Presses that are designed to provide maximum flexibility in handling processes like blanking, broaching and others. Further, these presses also allow change in speeds which can be pre-set at any stroke point with due assistance of limit switches/proximity switches/liner encoders/potentiometer.

With maximum frame rigidity by use of computer aided frames and finite element analysis, these presses can also be custom designed for suiting specific needs of customers. These find application in different applications across industry sectors including :

Blanking & Broaching
Coining
Die Tryout
Deep Drawing
Forming & Embossing
Hobbing
Laminating

Assembly
Riveting
Staking
Straightening
Testing
Trimmings

Models Capacity (Tons) Ram Size (mm) Daylight (mm) Stroke (mm) Shut Hgt. (mm) Table size (LxW) mm Electric Motor (H.P) No. of Cylinders Working Hi (mm) Bottom Ejector Slide
Locking Arrang ement		 T-Slots Working Pr. (Bar) Weight of
m/c (Appx.) Tons
HP-5 5 80 300 300 - 350 x 300 3 1 No. (D/A) 700 Optional - T-16 210 2
HP-10 10 100 350 350 - 350 x 300 5 1 No. (D/A) 700 Optional - T-16 210 2.5 to 3
HP-15 15 120 400 400 - 400 x 300 5 1 No. (D/A) 700 Optional - T-16 210 3-3.5
HP-20 20 125 400 400 - 400 x 300 5 1 No. (D/A) 700 Optional - T-16 210 3.5
HP-25 25 125 400 400 - 450 x 300 5 1 No. (D/A) 700 Optional - T-16 210 4-5
HP-30 30 140 400 400 - 450 x 300 5 1 No. (D/A) 700 Optional - T-16 210 4-5
HP-50/60 50/60 200 450 350 100 500 x 500 7.5 1+2 750 Optional - T-16 210 5 to 6
HP-80 80 220 500 400 100 600 x 500 7.5 1+2 750 Optional - T-20 210 6
HP-100 100 250 600 450 150 600 x 600 7.5 1+2 750 Optional - T-20 210 6.5
HP-125 125 270 700 550 150 700 x 600 10 1+2 750 Optional - T-22 210 7
HP-150 150 300 700 550 150 800 x 600 15 1+2 750 Optional - T-22 210 8
HP-200 200 350 700 500 200 900 x 800 20 1+2 750 Optional Provided T-22 210 10
HP-250 250 400 800 550 250 1000 x 800 25 1+2 750 Optional Provided T-22 210 11
HP-300 300 440 800 600 200 1000 x 900 30 1+2 750 Optional Provided T-24 210 12
HP-350 350 470 900 600 300 1000 x 1000 30 1+2 750 Optional Provided T-24 210 14
HP-400 400 510 900 600 300 1000 x 1000 40 1+2 750 Optional Provided T-24 210 15
HP-500 500 565 1000 700 300 1000 x 1000 50 1+2 750 Optional Provided T-24 210 16
HP-600 600 440 1100 800 300 1200 x 1000 60 2+2 800 Optional Provided T-24 210 18
HP-700 700 470 1200 900 300 1250 x 1000 60 2+2 800 Optional Provided T-30 210 22
HP-800 800 510 1200 800 400 1500 x 1200 75 2+2 800 Optional Provided T-30 210 26 to 28
HP-900 900 500 1500 1100 400 1500 x 1200 75 2+2 800 Optional Provided T-30 210 30 to 35
HP-1000 1000 530 1500 1000 400 1500 x 1200 75 2+2 800 Optional Provided T-30 210 35 to 40
HP-1200 1200 510 1500 1000 500 2000 x 1500 75 3+4 800 Optional Provided T-30 210 50
HP-1500 1500 530 1500 1000 500 2000 x 1500 100 3+4 800 Optional Provided T-30 210 55-60
