We provide Double Action Deep Drawing Hydraulic Press. These Double Action Deep Drawing Hydraulic Press are made from very high quality raw material which ensures hassle free work performance at its user end. These Double Action Deep Drawing Hydraulic Press are technologically advanced and confirm to industrial quality norms of international standard. These Double Action Deep Drawing Hydraulic Press are widely finds its applications in various industrial sectors.
These double action Drawing presses feature superior operations and have two slides acting from top. Some of the standard factors of these presses include :
Blank holding slide that helps in transferring blank holding force via blank holder onto blank and draw die
The die & ejector located in lower die on press bed
During forming, blank holder brings sheet metal into contact against die and punch descends from above into die and shapes the part while sheet metal can flow without any wrinkling out of blank holding area
The drawing process carried out with fixed blank holder and moving punch In double action drawing operations, drawing slide can only apply pressing force

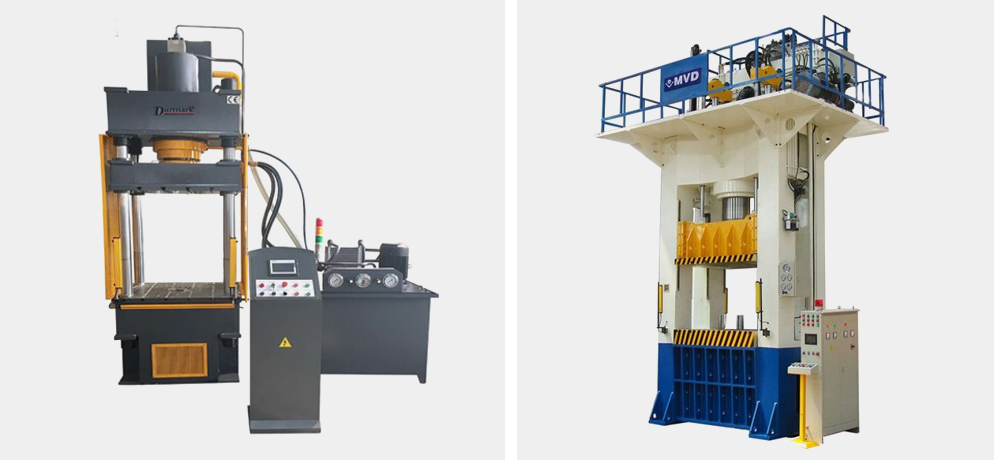

These double Action drawing presses also available in both pillars type and frame design
Custom built presses also available with features as per requirements of customers
| Standard Models | Capacity (Tons) | Return Force (Tons) | Table Size (mm) (LrxFB) | Day light (mm) | Stroke (mm) | Fast Approach Speed (mm/sec) | Slow Pressing Speed (mm/sec) | Return Speed (mm/sec) | Blank Holder Capacity (tons) | Bottom Ejector Stroke (tons) | Electric motor H.P. | Weight of the Press (Tons) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DDBH-30+30 | 30 | 10 | 500 x 400 | 400 | 300 | 100 | 10-15 | 150 | 25 | 150 | 7.5 | 5 |
| DDBH-60+60 | 60 | 15 | 600 x 500 | 600 | 400 | 150 | 10-15 | 150 | 30 | 200 | 10 | 8 |
| DDBH-80+80 | 80 | 15 | 800 x 600 | 650 | 450 | 150-200 | 10-15 | 200 | 60 | 250 | 15 | 10 |
| DDBH-100+100 | 100 | 20 | 900 x 750 | 900 | 600 | 150-200 | 10-15 | 200 | 80 | 250 | 15 | 12 |
| DDBH-150+150 | 150 | 25 | 1000 x 850 | 950 | 650 | 200 | 10-15 | 200-250 | 100 | 250 | 20 | 16 |
| DDBH-200+200 | 200 | 30 | 1000 x 1000 | 1050 | 700 | 200 | 10-15 | 250 | 150 | 250 | 25 | 18 |
| DDBH-250+250 | 250 | 30 | 1400 x 1200 | 1050 | 800 | 200 | 10-15 | 250 | 200 | 280 | 30 | 24 |
| DDBH-300+300 | 300 | 40 | 1250 x 1100 | 1200 | 750 | 300 | 10-15 | 300 | 300 | 300 | 40 | 26 |
| DDBH-400+400 | 400 | 40 | 1500 x 1250 | 1250 | 850 | 300 | 20-25 | 320 | 400 | 350 | 50 | 30-32 |
| DDBH-500+500 | 500 | 50 | 1500 x 1500 | 1500 | 1000 | 300 | 20-25 | 320 | 500 | 400 | 75 | 40 |
| DDBH-600+600 | 600 | 50 | 1600 x 1600 | 1600 | 1100 | 300 | 20-25 | 320 | 600 | 400 | 75 | 55-60 |
| DDBH-800+800 | 800 | 60 | 2800 x 2200 | 1600 | 1200 | 300 | 20-25 | 320 | 800 | 450 | 75 | 70-80 |
| DDBH-1000+1000 | 1000 | 60 | 3200 x 2200 | 1800 | 1300 | 300 | 20-25 | 320 | 1000 | 450 | 100 | 80-90 |
| DDBH-1200+1200 | 1200 | 80 | 3200 x 2200 | 1800 | 1200 | 300 | 20-25 | 320 | 1200 | 450 | 110 | 90 |
| DDBH-1500+1500 | 1500 | 80 | 3200 x 2500 | 2000 | 1500 | 300 | 20-25 | 320 | 1500 | 500 | 150 | 100 |
| DDBH-2000+2000 | 2000 | 100 | 3200 x 2500 | 2200 | 1600 | 300 | 20-25 | 300 | 2000 | 600 | 200 | 110-120 |
