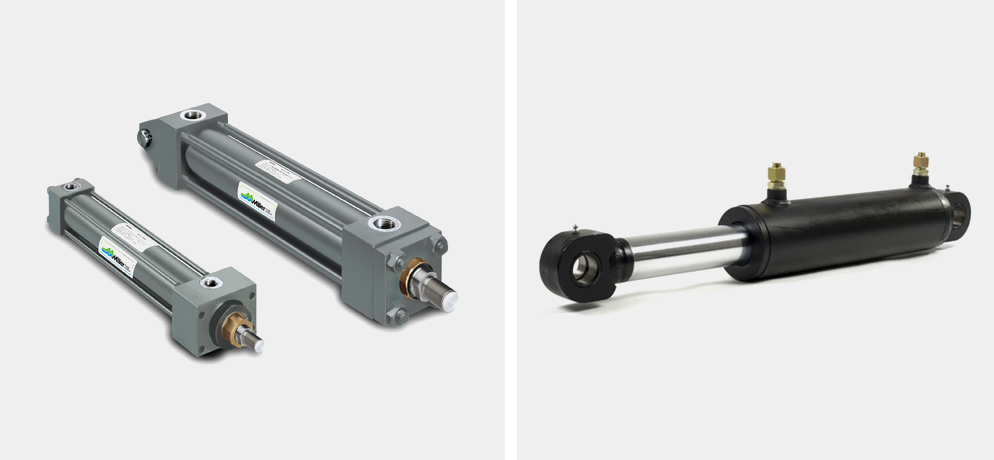

Sarvadnya Hydraulic & Automation are also one of the leading and well recognized names in the field of manufacturing precision engineered range of Hydraulic Cylinder Manufacturers in Nashik, Maharashtra, India. With modern infrastructure support backing our operations, these cylinders can be offered by us in different range from Bore size of 25 x Rod 12 x Stroke10 mm to Bore 330mm x Rod 200 X Stroke 3000 mm. Further, our expertise also lies in making these available in different working pressures of up to 500 Kg/cm2.
Our rich industry experience allows us to manufacture these cylinders with construction choices of :
Tie rod
Welded
Threaded
Bolted
Block
Further, sticking to our high quality standards, we make use of only tested and precision engineered sealing and guidance systems with all honed tubes micro finished to Ra value of less than 0.3 microns. Some of the standard construction parameters undertaken by us include :
Supplying cylinders with precision finished
Honed tubes Piston rods are ground and hard chrome plated
High performance standard tie rods and hydraulic cylinders used
Can also offer custom built threaded and block or clamp hydraulic cylinders
Use of superior sealing and guidance systems
Piston rods ground and hard chrome plated
| Model | Cylinder Capacity(Ton) | Stroke (mm) | Plate Area (mm) | Capacity (Ton) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| PHC-100 | 100 | 150 | 300 * 300 | 100 | 450 | 118 |
| PHC-150 | 150 | 150 | 300 * 300 | 150 | 500 | 146 |
| PHC-200 | 200 | 150 | 350 * 350 | 200 | 560 | 200 |
| PHC-250 | 250 | 150 | 400 * 400 | 250 | 580 | 230 |
| PHC-300 | 300 | 150 | 400 * 400 | 200 | 580 | 265 |
| PHC-350 | 350 | 150 | 400 * 400 | 250 | 600 | 322 |
